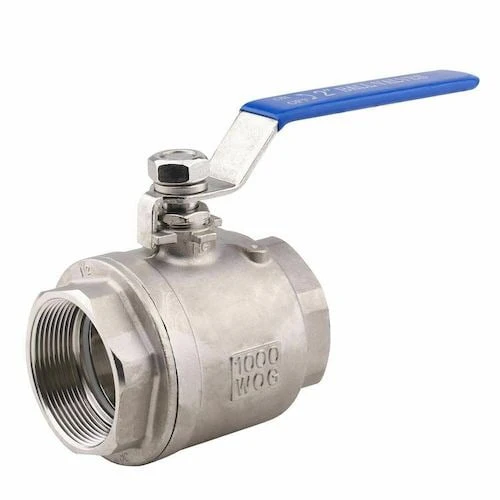

Stainless Steel Ball Valve 1 BSP Female

Description: Ball Valves are a very versatile valve and are commonly used in industrial applications through to home brewing kits. Suitable for applications up to 1000 PSI and up to 200 degrees

FEATURES

• 2 Piece investment casting body and cap
• Full port with threaded BSP ends
• Pressure rating 6890 kPa - PN63
• Temperature range -250C - 1800C
• Made with and approved to ISO9002 Standards

SPECIFICATIONS

• Body & Ball stainless steel 316 Grade
• Handle stainless steel 316 Grade
• 1" (25MM)
• Seals & Seat - PTFE
• Body Gasket - PTFE
• Cap stainless steel 316 Grade+
• Stem stainless steel 316 Grade
• Thrust washer - PTFE
• Stem packing - PT
• Gland nut stainless steel 316 Grade
• Spring washer stainless steel 316 Grade
• Nut stainless steel 316 Grade
• Lock plate stainless steel 316 Grade
• Handle cover - Plastic
